Privacy and video

note

Looking for the previous SDK? See the 6.x video privacy page.

Bugsee records the screen as video, attaches a screenshot to the report, and records touches and gestures. Everything on this page applies to all three: an area hidden from the video is also blanked in the report screenshot, and touches inside it are dropped from the report.

Disabling video​

Set BugseeOptionCaptureVideo (BugseeOptions.videoEnabled) to NO to record no video and no touches. The report screenshot is controlled separately: turn it off with BugseeOptionCaptureScreenshot (BugseeOptions.screenshotEnabled). See Configuration.

BugseeOptions *options = [BugseeOptions defaultOptions];
options.videoEnabled = NO;
options.screenshotEnabled = NO;

[Bugsee launchWithToken:@"<your_app_token>" options:options];

What is hidden automatically​

  • Secure text fields. A UITextField or UITextView with secureTextEntry set is masked in the video. This includes SwiftUI's SecureField.
  • The keyboard, while a masked field has focus. While a secure or protected text field or text view is the first responder, the keyboard is left out of the video and no touches are recorded.
  • Typing. Touches on a UITextField or UITextView, and key presses into one, are never recorded.
  • Payment card fields. The card number, CVC and expiry fields of Stripe, Braintree and card.io are marked protected when the SDK starts, so they are masked like any protected view.
  • WebView password and card fields. See WebView elements.
  • Text in the view hierarchy. The view hierarchy attached to a report never contains the text of labels or fields.

Protecting views​

Mark any other view as protected, and its area is blacked out in the video and the screenshot. Touches that start on it are dropped from the report.

@import Bugsee;

[Bugsee addSecureView:self.balanceLabel];

// ...and when it no longer needs hiding
[Bugsee removeSecureView:self.balanceLabel];

The bugseeProtectedView property that the SDK adds to UIView has the same effect:

self.balanceLabel.bugseeProtectedView = YES;

A protected view hides everything inside its bounds, the views it contains included, and in the view hierarchy it and the views it contains are flagged as protected.

In a storyboard or xib​

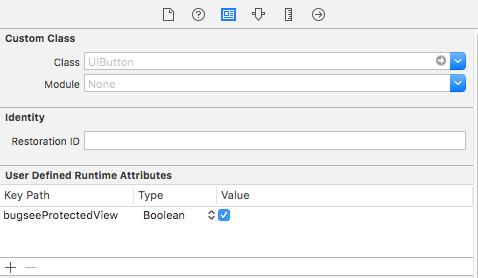

Storyboard protected view

  1. Open the storyboard or xib file and select the view to protect.
  2. Open the Identity inspector.
  3. Add a User Defined Runtime Attribute named bugseeProtectedView, of type Boolean, checked.

In SwiftUI​

The BugseeSwiftUI module adds the bugseeProtect() and bugseeProtect(isEnabled:) view modifiers:

import BugseeSwiftUI

Text(account.balance)
.bugseeProtect()

See SwiftUI for setup and the dynamic form.

While protected views move​

During an animated transition, such as a view controller push, the masks of protected views cannot follow every frame. By default those frames are recorded blurred into unreadable blocks. Set BugseeOptionCaptureVideoPrivacyBlur to NO to skip them instead: the video then freezes for the length of the transition. Either way the transition is never recorded unprotected in the video. The report screenshot is not blurred this way: a screenshot taken during a transition can show a protected view before its mask has caught up.

Secure rectangles​

Hide a part of the screen by its coordinates.

// Returns NO if the rectangle is already hidden
BOOL added = [Bugsee addSecureRectangle:CGRectMake(10, 10, 100, 100)];

// Returns NO if there is no such rectangle
BOOL removed = [Bugsee removeSecureRectangle:CGRectMake(10, 10, 100, 100)];

[Bugsee removeAllSecureRectangles];
warning

Do not read the values that getAllSecureRectangles returns with CGRectValue (cgRectValue). In 7.0.0 they do not hold a CGRect, and the call raises an exception. Keep your own list of the rectangles you add.

  • Coordinates are in points, in the screen's coordinate space (UIScreen.coordinateSpace), with the origin in the top-left corner. They follow the interface orientation: when the interface rotates, the same rectangle covers a different part of your content, so update your rectangles when the layout changes.

  • With several of the app's windows on the screen (iPad Split View or Stage Manager), every window is recorded. Convert a rectangle measured in a window to screen coordinates before you add it:

    let rect = view.convert(view.bounds, to: view.window!.screen.coordinateSpace)
    Bugsee.addSecureRectangle(rect)
  • Touches that start inside a rectangle are dropped from the report.

WebView elements​

In a WKWebView, mark a page element with the bugsee-hide CSS class to hide it:

<input type="text" class="bugsee-hide">
<div class="bugsee-hide">Account number: 1234 5678</div>

Password inputs (type="password") and inputs whose autocomplete attribute names a card field (cc-number, cc-csc, and other cc- values) are hidden without the class. To record one of them anyway, add the bugsee-show class:

<input type="password" class="bugsee-show">

This works through a script Bugsee adds to the page, which is controlled by BugseeOptionCaptureWebViewAdvanced (on by default). With the option off, no script is added and these elements are not hidden: protect the whole web view instead. Bugsee attaches itself to web views automatically; for a WKWebView created before launchWithToken:, call addSecureWebView::

[Bugsee addSecureWebView:self.webView];

addSecureWebView: does not hide the web view. To hide all of it, protect it as a view with addSecureView:.

Blackout​

Blackout suppresses every capture that describes the screen, for as long as you need:

  • the video, which records a black placeholder frame;
  • the report screenshot;
  • touches and gestures;
  • the keyboard and focus breadcrumbs;
  • the view hierarchy.

Console logs, network events, traces and other non-visual data keep being captured.

[Bugsee startBlackout];
// ... sensitive flow ...
[Bugsee endBlackout];

BOOL blackedOut = [Bugsee isBlackout];
  • A blackout lasts until endBlackout or stop:. Stopping ends it, and a later launch starts without one: call startBlackout again to black out the new session. A stop: made while Bugsee is not running, before the launch that a blackout was started for, leaves that blackout on.
  • A relaunch is the exception: it keeps the blackout, so the new session starts blacked out.
  • startBlackout called before launch is honoured: the session starts blacked out.
  • The transitions are reported as the BugseeLifecycleEventBlackoutStarted and BugseeLifecycleEventBlackoutEnded lifecycle events. See Lifecycle & status.

Recording less detail​

When too many views hold sensitive data to mark them one by one, record them at a detail too low to read. You can still follow the user's navigation.

OptionDefaultEffect
BugseeOptionCaptureVideoScale (videoScale)1.0Reduces the detail of every recorded video frame. A value between 0 and 1 enables it, for example 0.3; 0 and values of 1 or more leave it off.
BugseeOptionCaptureScreenshotScale1.0The same for the report screenshot. A value below 1 reduces its detail. Unlike the video scale, 0 or less does not turn it off: it gives the strongest reduction.

Video from players and the camera​

Some content is not drawn by your views, and Bugsee records it only when you opt in:

OptionDefaultRecords
BugseeOptionCaptureAVPlayer (captureAVPlayer)NOVideo played through AVPlayerLayer and AVPlayerViewController.
BugseeOptionCaptureSampleBufferDisplayLayer (captureSampleBufferDisplayLayer)NOVideo the app renders into an AVSampleBufferDisplayLayer, as used by video-calling and custom players.
BugseeOptionCaptureCameraPreview (captureCameraPreview)NOThe live camera image in an AVCaptureVideoPreviewLayer.
Camera preview records what the camera sees

With BugseeOptionCaptureCameraPreview on, bug reports contain whatever the lens is pointed at — faces, surroundings, documents — whether or not the user ever took a photo. Do not enable it unless your users know and agree. It also makes Bugsee part of your capture session: it reads frames from your AVCaptureVideoDataOutput, or adds an output of its own, and a camera screen then records at the full frame rate. Without the option, a camera preview records as an empty rectangle.

Checking what is recorded​

showVideoCapturePreview shows a floating panel with a live preview of the frames Bugsee captures, masks included. Use it during development to check that your sensitive views are hidden. The panel itself is not recorded.

[Bugsee showVideoCapturePreview];
// ...
[Bugsee hideVideoCapturePreview];
